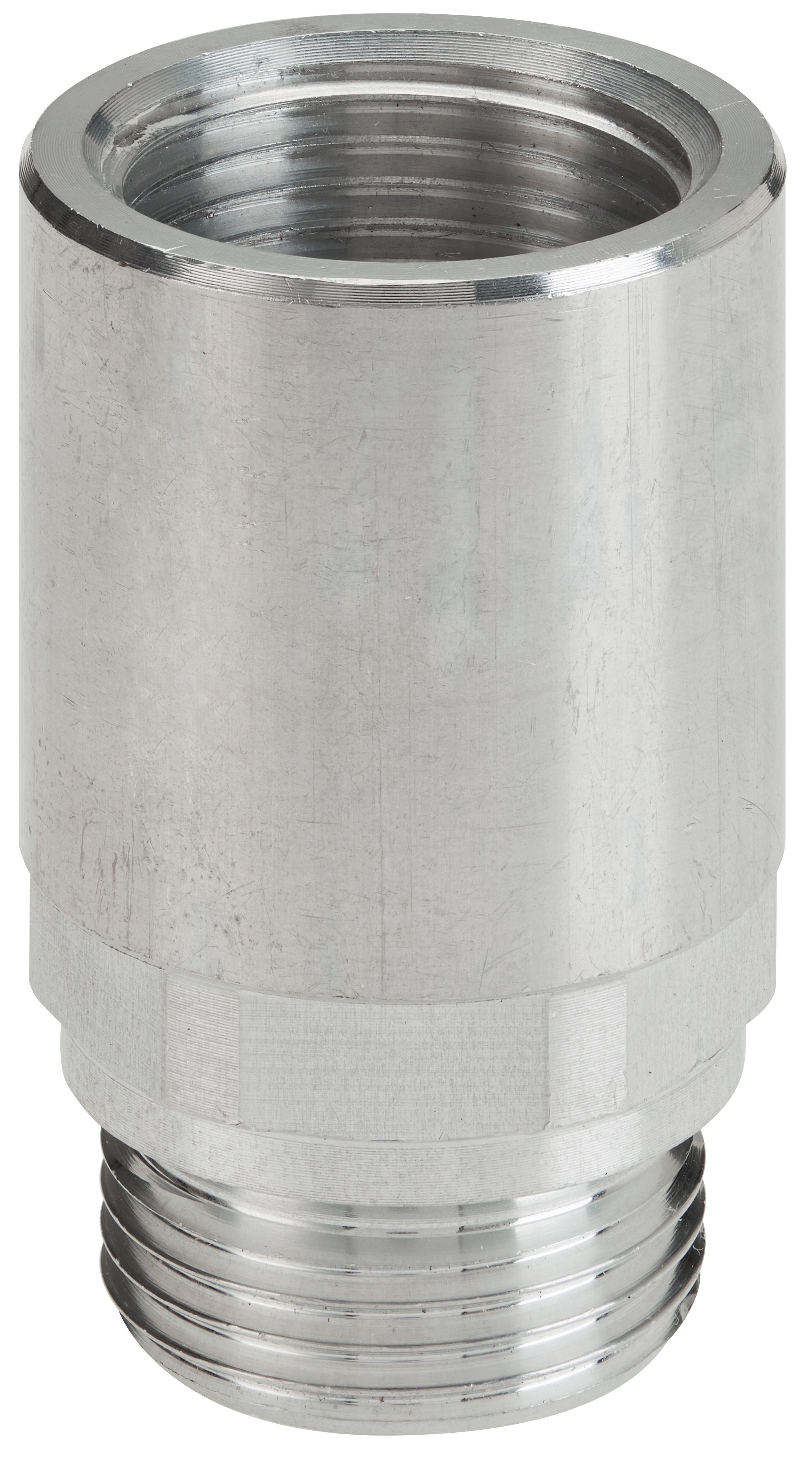

PRS/F
Extension for oil with breather
Made of aluminium alloy without treatment, same thread for both internal and external side, with large chamber with labyrinth. Particularly suitable for agricultural, earth moving and building machines.
Available on request with anodizing treatment.
On request available also in steel without internal diaphragms.
Technical Info - GAS ISO 228
| TYPE | CODE | THREAD | d | h | f | e | WEIGHT (g) |
| PRS/F1G | 1GPSF10A | 1/4" | 20 | 40 | 8 | 17 | 28 |
| PRS/F2G | 1GPSF20A | 3/8" | 26 | 40 | 10 | 22 | 45 |
| PRS/F3G | 1GPSF30A | 1/2" | 30 | 40 | 11 | 27 | 61 |
| PRS/F4G | 1GPSF40A | 3/4" | 36 | 50 | 12 | 32 | 103 |
| PRS/F5G | 1GPSF50A | 1" | 42 | 50 | 14 | 38 | 136 |
Technical Info - MB METRIC
| TYPE | CODE | THREAD | d | h | f | e | WEIGHT (g) |
| PRS/F1M | 1MPSF10A | 14 x 1.5 | 20 | 40 | 8 | 17 | 28 |
| PRS/F2M | 1MPSF20A | 16 x 1.5 | 26 | 40 | 10 | 22 | 46 |
| PRS/F3M | 1MPSF30A | 18 x 1.5 | 26 | 40 | 10 | 22 | 42 |
| PRS/F4M | 1MPSF40A | 20x 1.5 | 30 | 40 | 11 | 27 | |
| PRS/F5M | 1MPSF50A | 22 x 1.5 | 30 | 40 | 11 | 27 | 60 |
