TCLS/Z

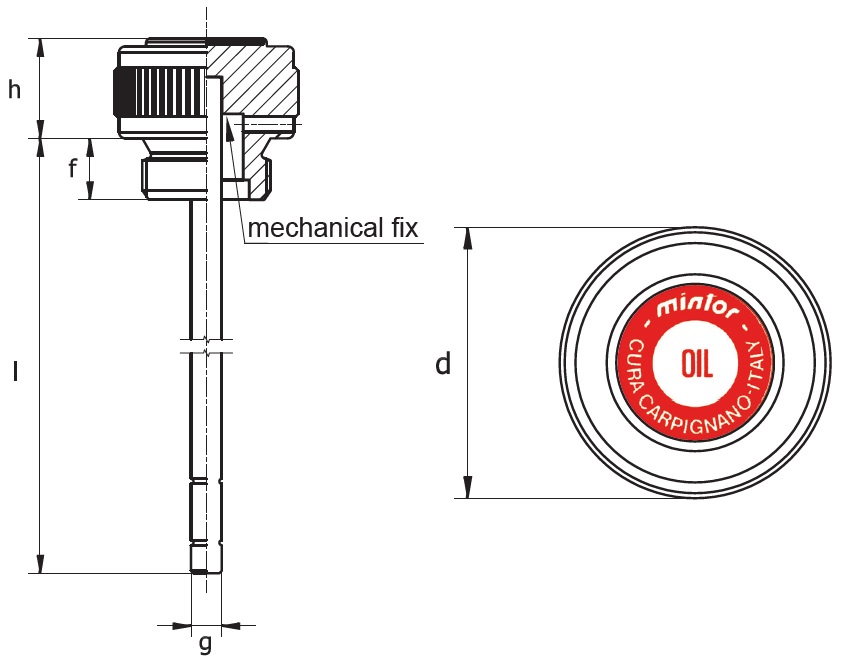

Filling plug with dipstick and breather
Threaded plug in aluminium alloy, without treatment, with knurled round head for hand-tightening. Hole for venting internal pressure diameter from 2 mm to 3,5 mm free vented. Built-in dipstick. Is possible to supply it, on request, also with minimum and maximum notches or with different lengths. For applications requiring extratight sealing, type LSF is recommended.
Available on request with anodizing treatment.
Technical Info - GAS ISO 228
| TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g) |
| TCLS/Z1G | 1GLSZ10A | 1/4" | 12 | 8 | 120 | 5 | 22 | |
| TCLS/Z2G | 1GLSZ20A | 3/8" | 13.5 | 10 | 170 | 5 | 26 | 48 |
| TCLS/Z3G | 1GLSZ30A | 1/2" | 16.5 | 10 | 170 | 5 | 30 | 59 |
| TCLS/Z4G | 1GLSZ40A | 3/4" | 21.5 | 12 | 200 | 5 | 40 | 106 |
| TCLS/Z5G | 1GLSZ50A | 1" | 21.5 | 14 | 200 | 5 | 45 | 129 |
| TCLS/Z6G | 1GLSZ60A | 1" 1/4 | 21.5 | 15 | 250 | 5 | 55 | 188 |
| TCLS/Z7G | 1GLSZ70A | 1" 1/2 | 21.5 | 15 | 250 | 5 | 55 | 204 |
| TCLS/Z8G | 1GLSZ80A | 2" | 21.5 | 17 | 250 | 5 | 70 |
Technical Info - MB METRIC
| TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g) |
| TCLS/Z1M | 1MLSZ10A | 14 x 1.5 | 12 | 8 | 120 | 5 | 22 | |
| TCLS/Z2M | 1MLSZ20A | 16 x 1.5 | 12 | 10 | 170 | 5 | 26 | 34 |
| TCLS/Z3M | 1MLSZ30A | 18 x 1.5 | 12 | 10 | 170 | 5 | 26 | |
| TCLS/Z4M | 1MLSZ40A | 20 x 1.5 | 15 | 10 | 170 | 5 | 30 | |
| TCLS/Z5M | 1MLSZ50A | 22 x 1.5 | 15 | 10 | 170 | 5 | 30 | |
| TCLS/Z6M | 1MLSZ60A | 24 x 2 | 16.5 | 12 | 200 | 5 | 36 | |
| TCLS/Z7M | 1MLSZ70A | 30 x 2 | 20 | 12 | 200 | 5 | 42 | |
| TCLS/Z8M | 1MLSZ80A | 33 x 2 | 21.5 | 14 | 200 | 5 | 45 |
