PLT - STAINLESS STEEL

Vertical level indicator with thermometer

Used for checking fluid level in large tanks. Protection in stainless steel INOX 316 and transparent part in polyamide. Complete with seals, thermometer, screws and anchor nuts. Easy to assemble, it gives a tolerance of 0,5 mm along the distance of holes, maintaining a perfect seal.

Avoid contacts with alcohol, trichloroethylene, solvents, petrol and petroleum on transparent part.

Recommended working temperature: 0°C + 80°C max.

Pressure: 3 bar max.

Torque: 10 Nm max.

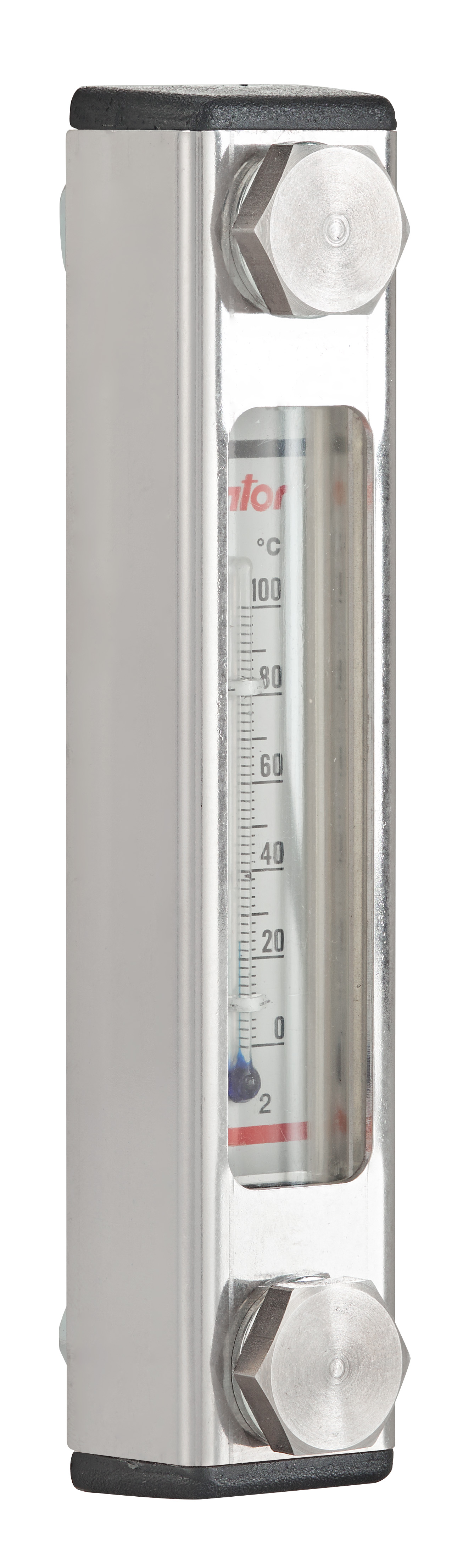

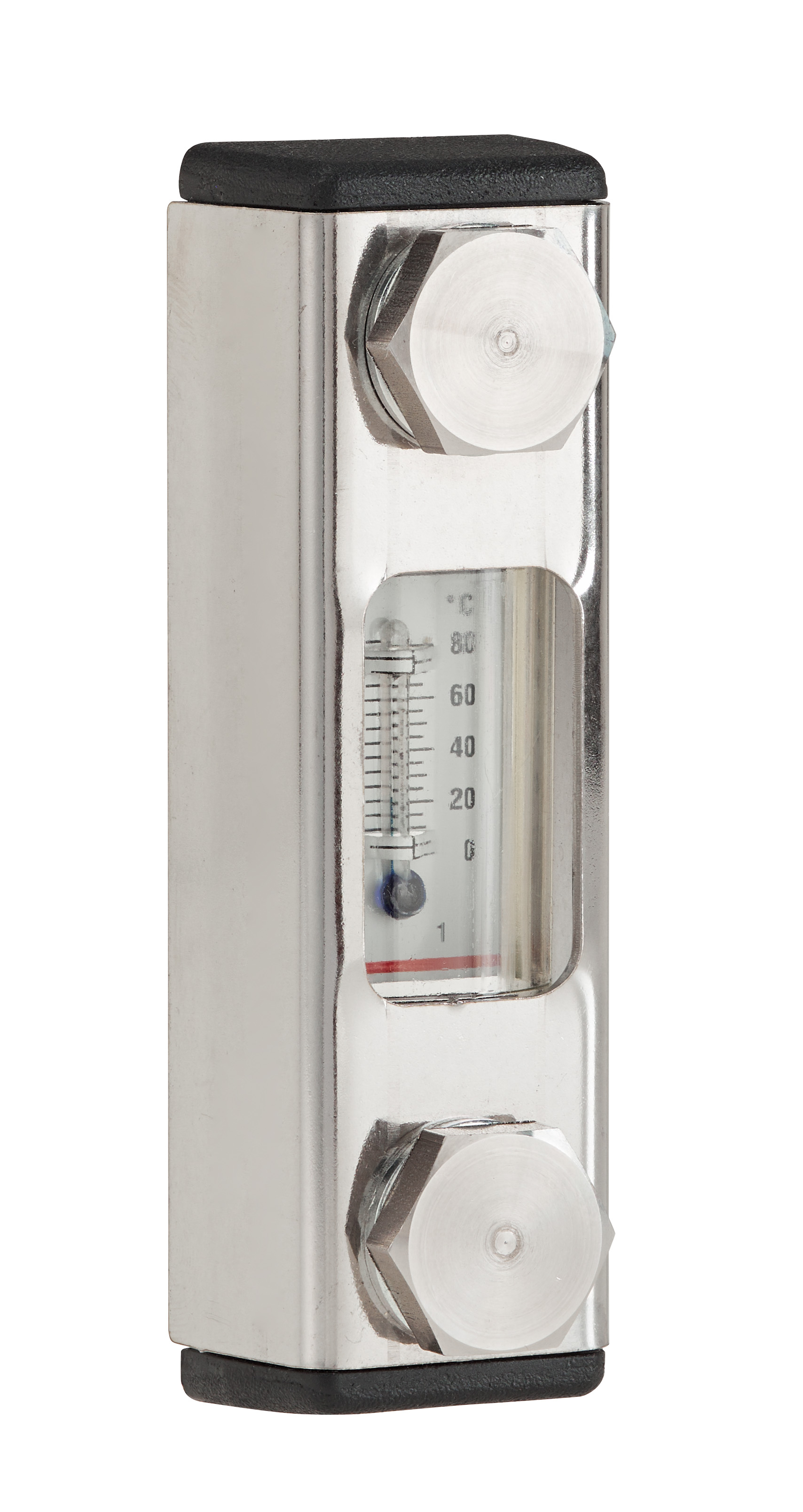

Foto PLT - STAINLESS STEEL
Foto PLT - STAINLESS STEEL
Foto PLT - STAINLESS STEEL

Technical Info

TYPE L r v c i f CH h a b
PLT1 109 34 37 16.5 76 M 10 17 21.5 11 29
PLT1 109 34 37 16.5 76 M 12 17 21.5 11 29
PLT2 160 34 88 16.5 127 M10 17 21.5 16 29
PLT2 160 34 88 16.5 127 M 12 17 21.5 16 29
