TCE INOX

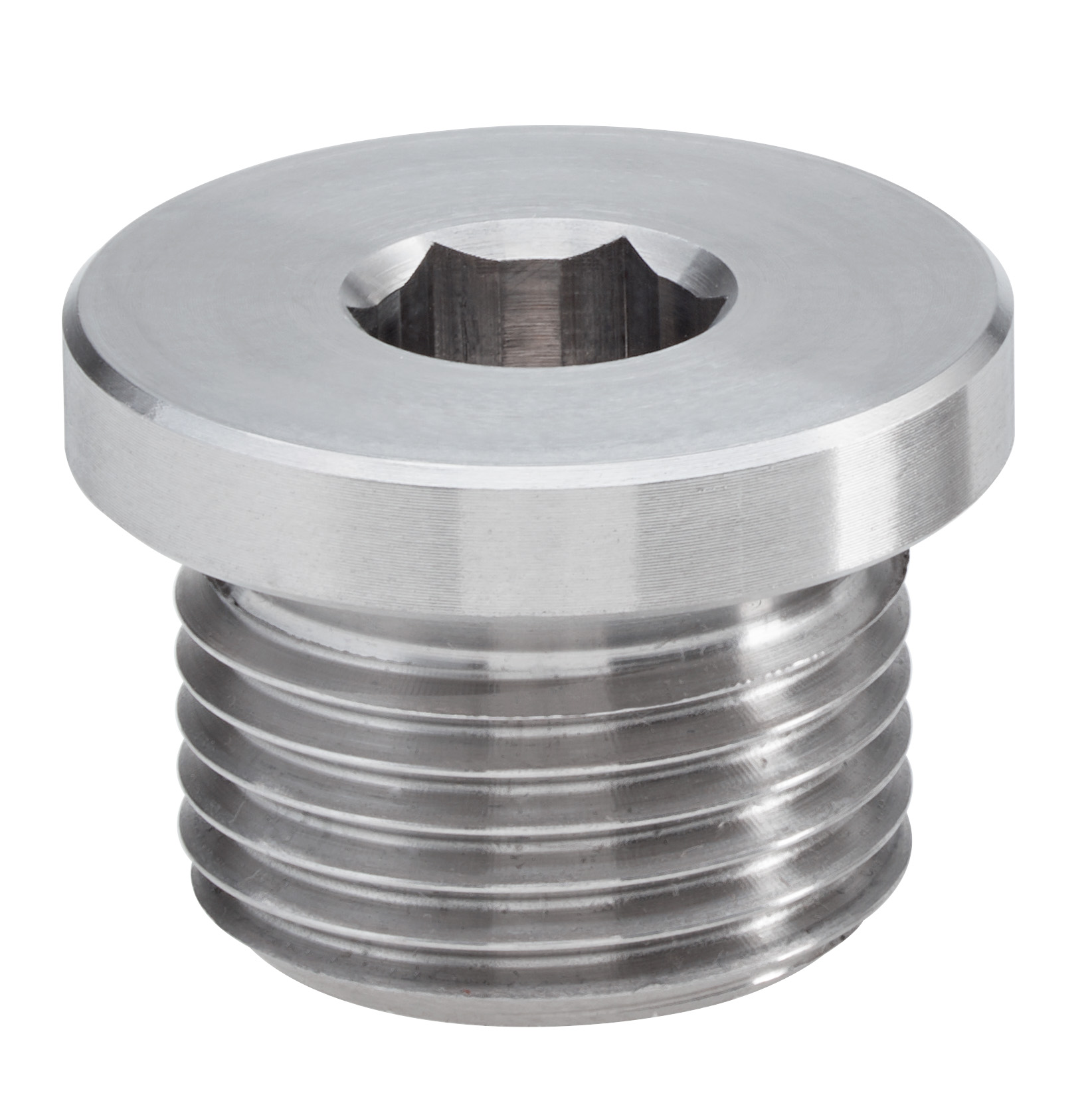

Drain filling plug with hex slot
Made of stainless steel. High twisting resistance, suitable for applications requiring minimum projection.
According to DIN 908 specification.
Technical Info - GAS ISO 228
The measurements below refer to the types we currently produce.
In case of request for different versions, we are at your disposal for an offer without obligation, by clicking on the "Ask for Information" box above.

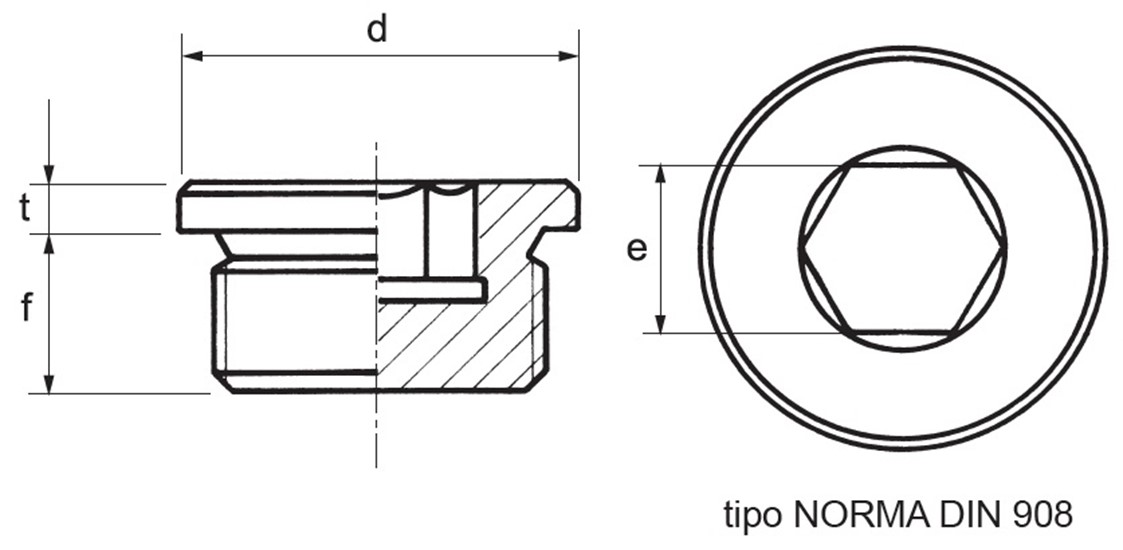

| CODE | THREAD | d | t | f | e | GASKETS | INOX |
| 1GTBE00X | 1/8" | 14 | 3 | 8 | 5 | PLAIN UPON REQUEST | 304 |
| 1GTBE01X | 1/8" | 14 | 4 | 8 | 5 | TRAPEZOIDAL | 316 |
| 1GTBE10X | 1/4" | 18 | 3 | 12 | 6 | PLAIN UPON REQUEST | 304 |
| 1GTBE11X | 1/4" ALL-THREADED | 18 | 3 | 9 | 6 | FIBER | 303 |
| 1GTBE14X | 1/4" | 19 | 5 | 12 | 6 | TRAPEZOIDAL | 316 |
| 1GTBE1SX | 1/4" | 18 | 3 | 12 | 6 | FIBER | 304 |
| 1GTBE1XW | 1/4" | 18 | 3 | 12 | 6 | PLAIN UPON REQUEST | 316 |
| 1GTBE20X | 3/8" | 22 | 3 | 12 | 8 | FIBER | 304 |
| 1GTBE21X | 3/8" | 22 | 3 | 12 | 8 | PLAIN UPON REQUEST | 316 |
| 1GTBE22X | 3/8" | 22 | 3 | 12 | 8 | O-RING | 303 |
| 1GTBE23X | 3/8" | 22 | 5 | 12 | 8 | TRAPEZOIDAL | 316 |
| 1GTBE2XW | 3/8" | 22 | 3 | 12 | 8 | PLAIN UPON REQUEST | 304 |
| 1GTBE36X | 1/2" | 26 | 4 | 14 | 10 | PLAIN UPON REQUEST | 316 |
| 1GTBE3SX | 1/2" | 26 | 4 | 14 | 10 | FIBER | 304 |
| 1GTBE3XW | 1/2" | 26 | 4 | 14 | 10 | PLAIN UPON REQUEST | 304 |
| 1GTBE40X | 3/4" | 32 | 4 | 16 | 12 | PLAIN UPON REQUEST | 304 |
| 1GTBE50X | 1" | 40 | 5 | 16 | 17 | PLAIN UPON REQUEST | 316 |
| 1GTBE51X | 1" | 40 | 5 | 16 | 17 | FIBER | 316 |
| CODICE | FILETTATURA | d | t | f | e | GUARNIZIONE | INOX |
| 1MTBE10X | 12 x 1,5 | 17 | 3 | 12 | 6 | PIANA A RICHIESTA | 304 |
