Magnetic oil - drain plug with hex slot

Made of aluminium alloy, without treatment. A permanent magnetic insert of special alloy attracts and holds ferrous particles suspended or circulating in the oil. Especially recommended for high-rpm machinery. It is supplied exclusively with metal washers only.

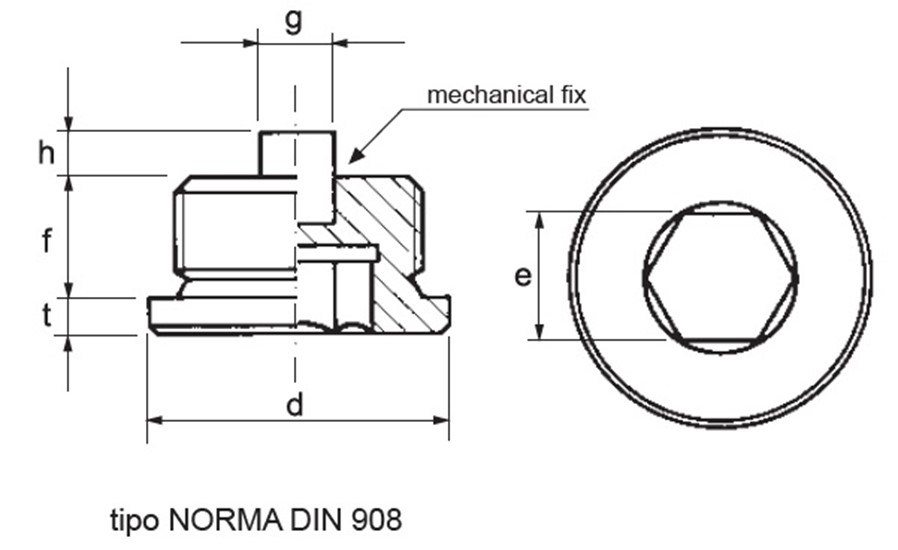

Type STANDARD DIN 908

Available on request with anodizing treatment.

Foto TCEM
Foto TCEM
Foto TCEM

Technical Info - GAS ISO 228

Type of magnet used:
A = Alnico (Max operating temperature + 300 ° C)
N = Neodymium (Max operating temperature + 80 ° C)

TYPE CODE THREAD e g h f t d MAGNET WEIGHT (g)
TCEM0G 1GTEM00A 1/8" 5 3 4 8 3 14 N 4
TCEM1G 1GTEM10A 1/4" 6 5 5 12 3 18 N 7
TCEM2G 1GTEM20A 3/8" 8 5 5 12 3 22 N 10
TCEM3G 1GTEM30A 1/2" 10 6 5 14 4 26 N 18
TCEM4G 1GTEM40A 3/4" 12 10 6 16 4 32 N 32
TCEM5G 1GTEM50A 1" 17 10 6 16 5 40 N 50
TCEM6G 1GTEM60A 1" 1/4 22 15 10 16 5 49 A 87
TCEM7G 1GTEM70A 1" 1/2 24 15 10 16 5 55 A 105
TCEM8G 1GTEM80A 2" 32 15 15 20 5 68 A 184

Technical Info - MB METRIC

TYPE CODE THREAD e g h f t d MAGNET WEIGHT (g)
TCEM0M 1MTEM00A 10 x 1 5 3 4 8 3 14 N 4
TCEM1M 1MTEM10A 12 x 1.5 6 5 4 12 3 17 N 6
TCEM2M 1MTEM20A 14 x 1.5 6 5 5 12 3 19 N 7
TCEM3M 1MTEM30A 16 x 1.5 8 5 5 12 3 21 N 9
TCEM4M 1MTEM40A 18 x 1.5 8 6 5 12 3 23 N 12
TCEM5M 1MTEM50A 20 x 1.5 10 6 5 14 4 25 N 16
TCEM6M 1MTEM60A 22 x 1.5 10 6 5 14 4 27 N 20
TCEM7M 1MTEM70A 24 x 1.5 12 6 5 14 4 29 N 22
TCEM8M 1MTEM80A 24 x 2 12 8 6 14 4 29 A 22
TCEM9M 1MTEM90A 26 x 1.5 12 10 6 16 4 32 N 31
TCEM10M 1MTEM91A 27 x 2 12 10 6 16 4 32 N
TCEM11M 1MTEM92A 30 x 1.5 17 10 6 16 4 36 N 35
TCEM12M 1MTEM93A 30 x 2 17 10 6 16 4 36 N 35
TCEM13M 1MTEM94A 33 x 2 17 10 6 16 5 40 N 49
