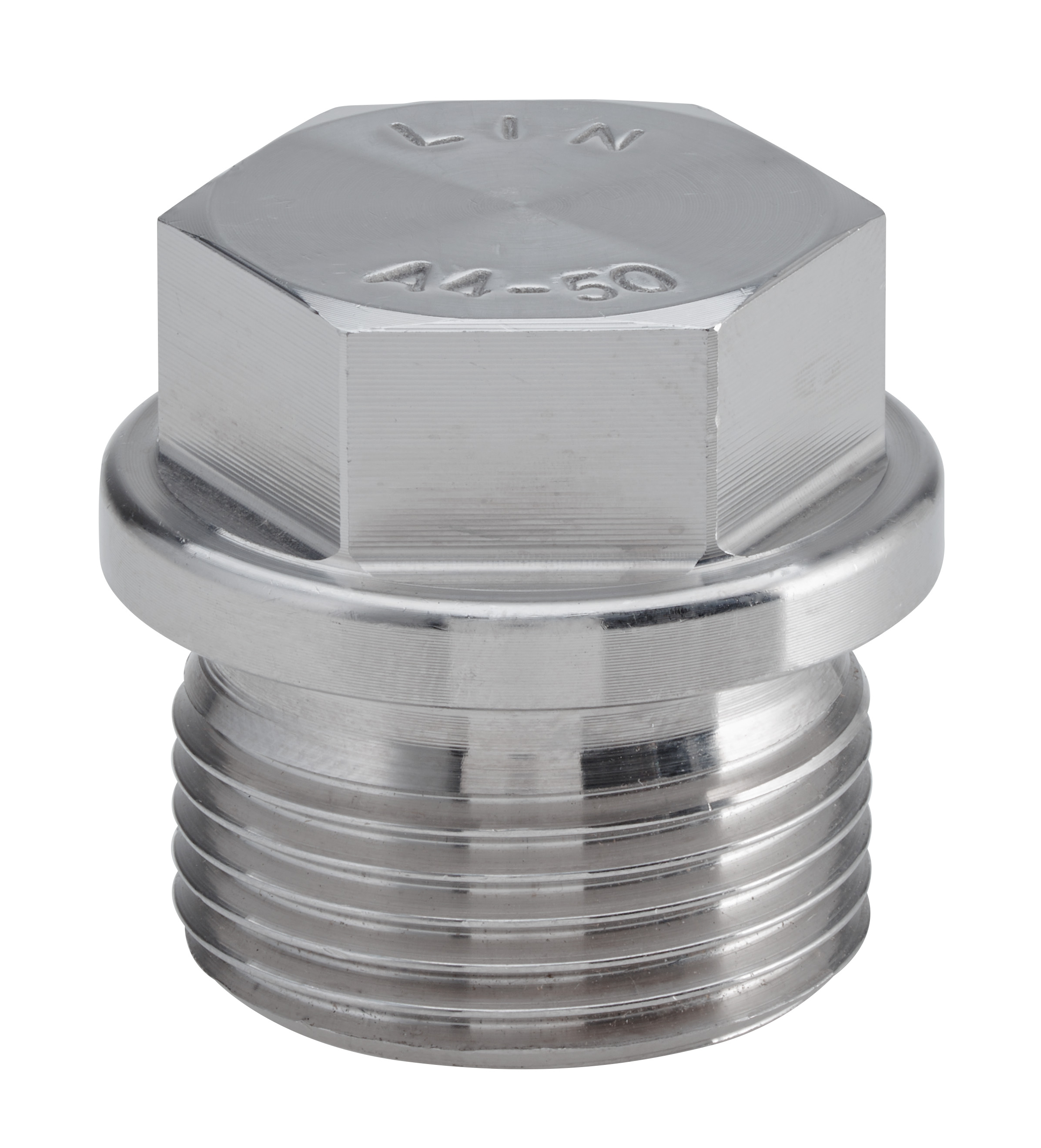

Filling plug
Made of stainless steel, tight-sealing, maximum resistance to twisting and overheating. Polyged head produces a crown with greater sealing area against the crankcase.
According to norm DIN910
The measurements below refer to the types we currently produce.
In case of request for different versions, we are at your disposal for an offer without obligation, by clicking on the "Ask for information" box above.

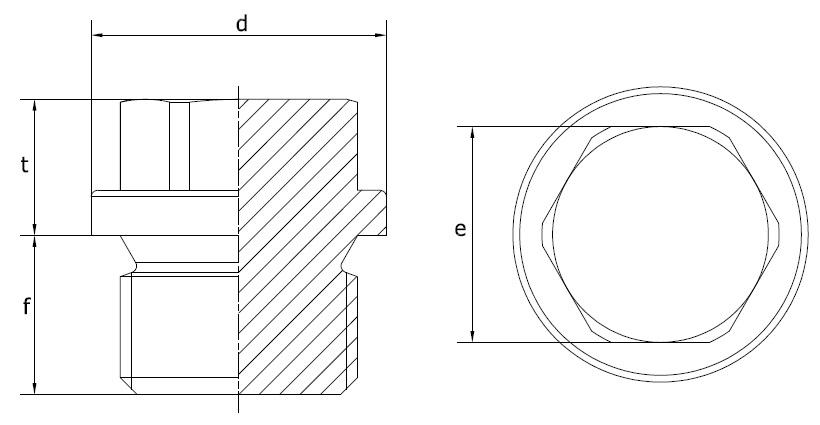

CODE | THREAD | d | t | f | e | INOX |
1GC/F30X | 1/2" | 26 | 12 | 14 | 19 | 316 |
1GC/F40X | 3/4" | 32 | 14 | 16 | 24 | 316 |
