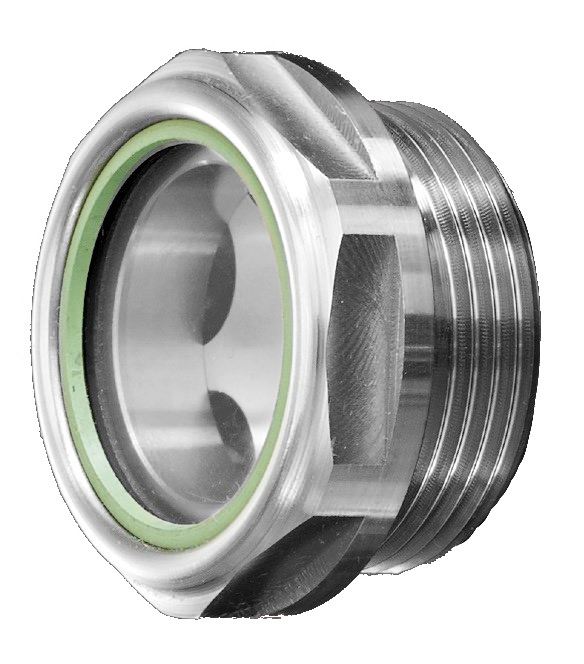

TLAX/F INOX
Visible level indicator with glass
Made of stainless steel, with transparent Pyrex glass window suitable for high and low temperatures from - 20 ° C to + 200 ° C max.
Recommended pressure: 3 bar.
The polygonal head allows to obtain a crown with a greater surface of adhesion to the counterbore of the crankcase.
Technical Info - GAS ISO 228
The measurements below refer to the types we currently produce.
In case of request for different versions, we are at your disposal for an offer without obligation, by clicking on the "Ask for Information" box above.

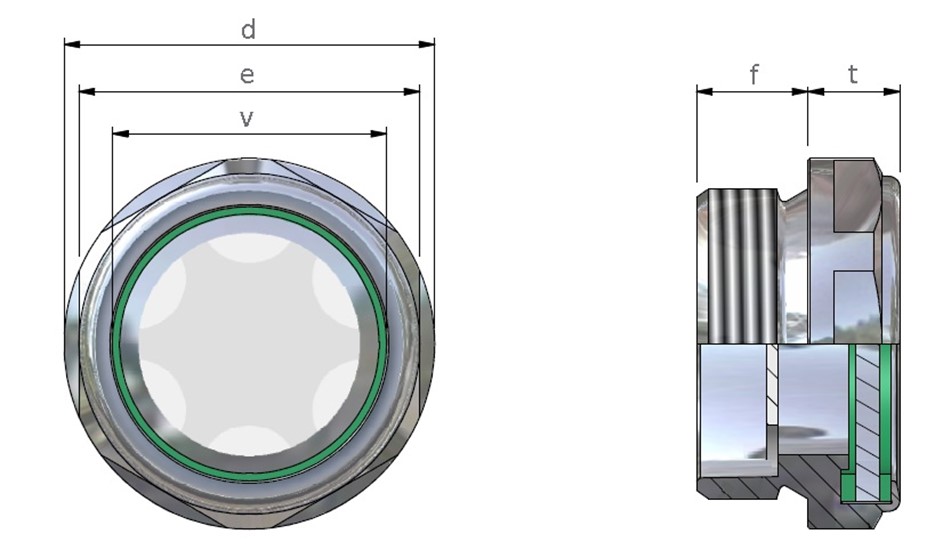

| THREAD | f | t | d | e | v | INOX |
| 1" 1/4 | 15 | 12.5 | 50 | 46 | 37 | 303 |
