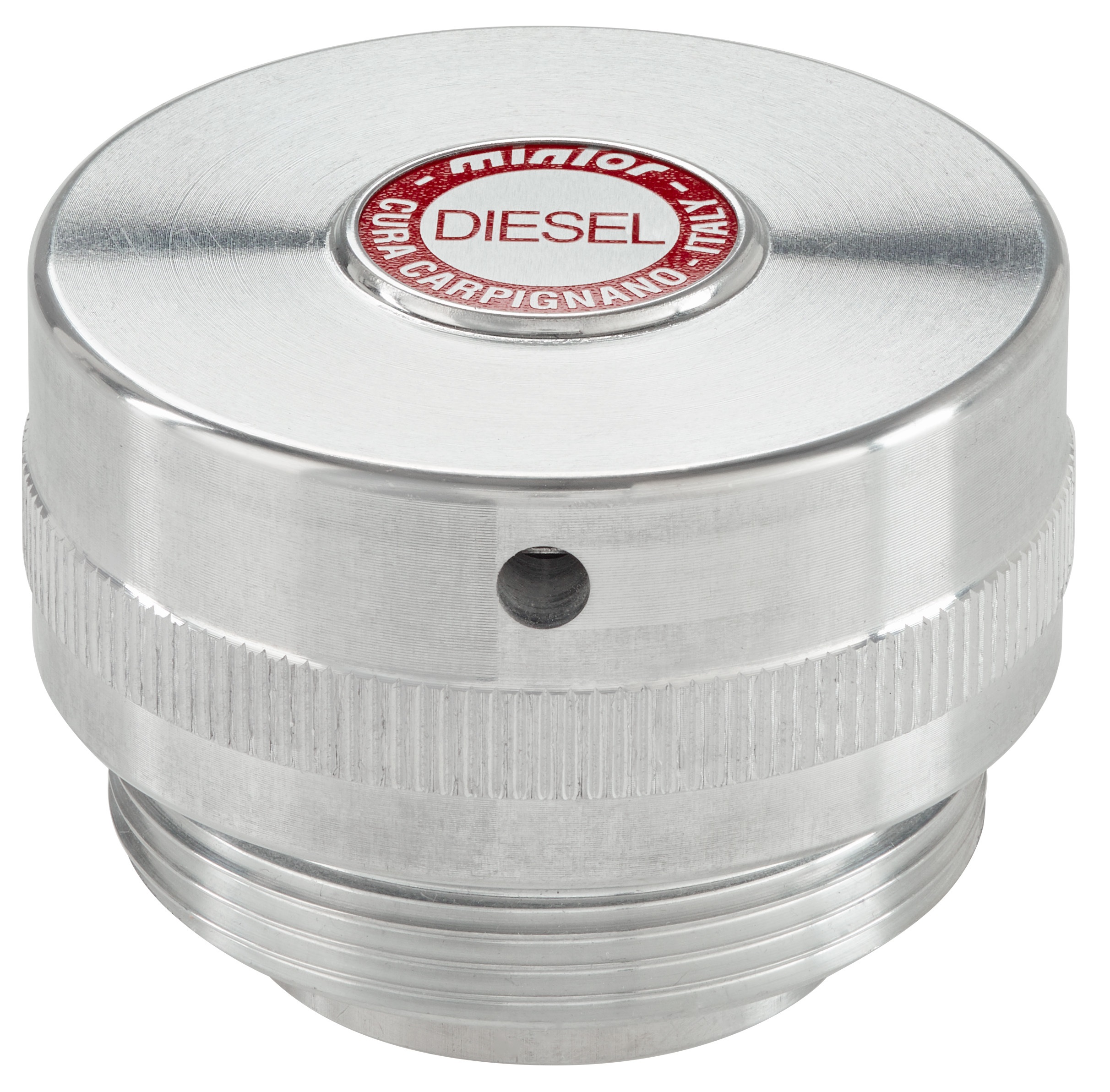

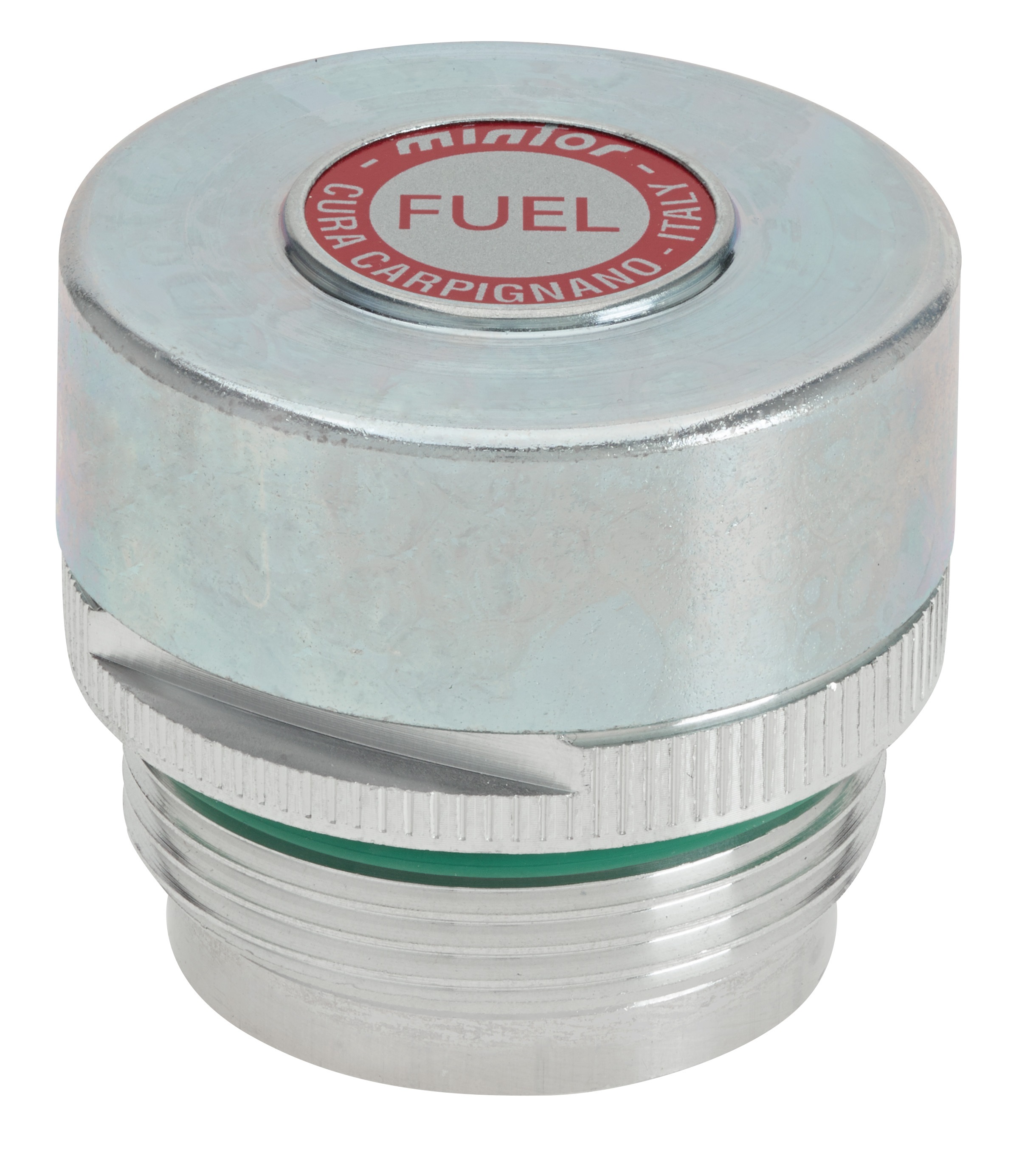

TSVV/Z

Breather plug with double valve

Breather cap and suction with double valve constructed of aluminium alloy without treatment. Supplied with calibration breather from 0,07 to 0,15 bar and the inlet from 0,02 to 0,05 bar. The dual valve allows the cap both the entrance and the exit pressure. Supplied complete with Viton O-ring gasket for Diesel breather and NBR for Oil breather. Particularly suitable for tanks, portable tanks, generators and hydraulic lifting equipment.

Available on request with anodizing treatment.

Foto TSVV/Z
Foto TSVV/Z
Foto TSVV/Z

Technical Info - GAS ISO 228

TYPE CODE THREAD CAP h f d g l WEIGHT (g)
TSVV/Z7G 1GSVVZ70 1" 1/2 31 14 55 42 7 180
TSVV/Z8G 1GSVVZ80 2"   31 14 70 42 7 324
